Replace the Hydraulic Joint With an Electric Drive
Swap the hydraulic ram for a sealed electric drive at the pivot: rated to 6,000 Nm, 10,000 Nm max torque, the same torque both ways, and nothing to service.
Evaluation unit A$4,950, credited in full against your first order of 10 or more. About 2 months lead time.
A cylinder is weaker on the way back. The RG600 isn't.
Pushing, a hydraulic cylinder uses its whole piston. Pulling, it only has the ring around the rod, so it pulls with 50–70% of its push force. The RG600 drives a joint with the same torque in both directions: equally strong lifting and lowering, opening and closing.
Built for the slow, heavy joints on electric machines
If you're building a battery-electric machine and the only reason to carry a pump, tank and hoses is a few joints, the RG600 bolts on at the pivot and drives each one straight off the battery. It suits joints that move slowly and carry a lot: lifts, folds, tilts, legs and levelling. It isn't built for fast swing or digging impacts, and we'll tell you straight if your joint is one of those.
Driving E-XD's electric platform machines
Equipment maker E-XD builds its all-electric platform range on Powered Motion drivetrains — RG600 gearboxes, BLDC motors and our control stack — including the Cyber Clydesdale, the world's first 2-wheel electric skid-steer platform. Every joint that would traditionally run a hydraulic ram runs a Powered Motion drive instead.
Prove it on your machine first
Serious about designing the RG600 into your equipment? Start with an engineering evaluation unit:
- Evaluation unit A$4,950 — fully credited against your first production order of 10 or more units, so a genuine program effectively evaluates free
- Approximately 2-month lead time from payment
- Spec support from our engineering team while you validate it on your own rig
One source for the whole electric drivetrain

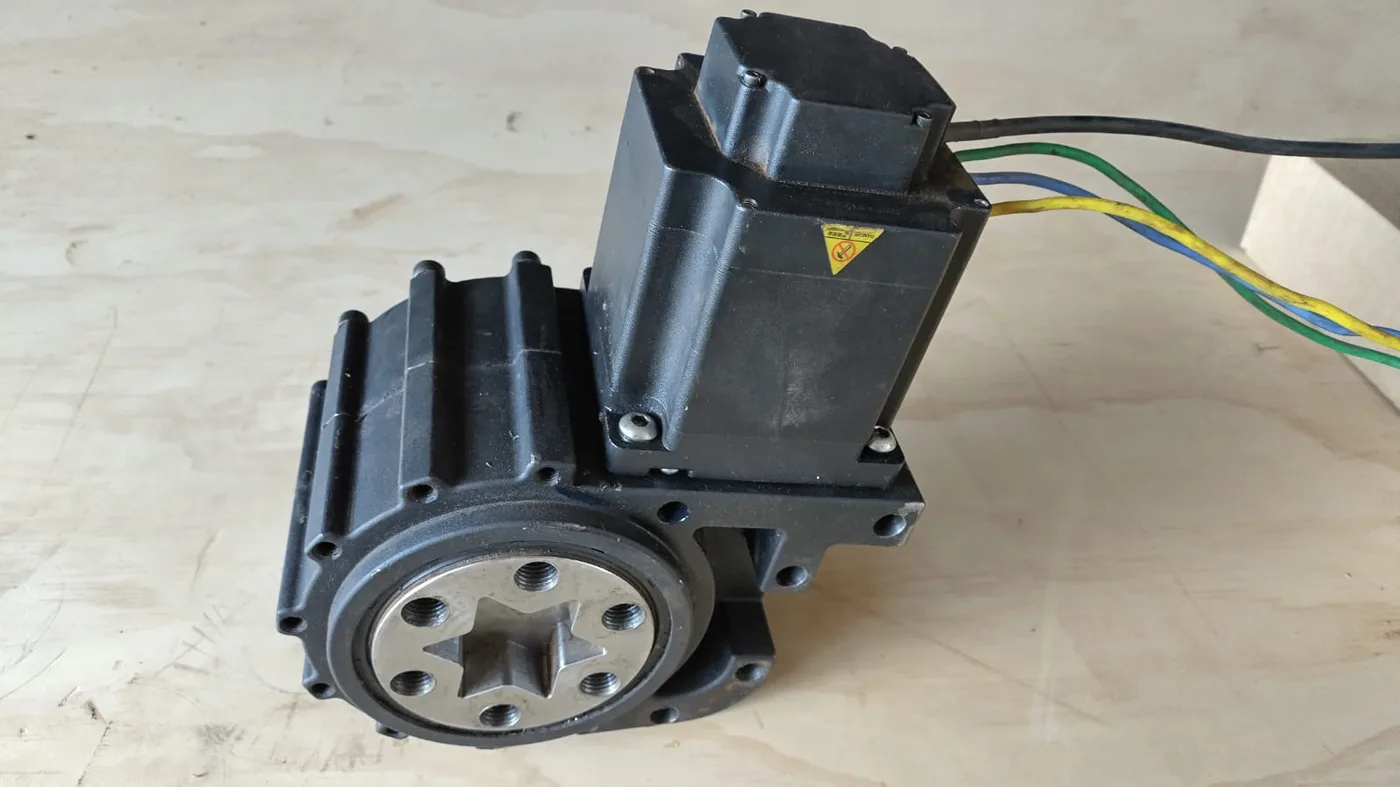

RG600 Rotary Actuator
Patent-pending reduction gearbox rated to 6,000 Nm continuous, 10,000 Nm max, with the same torque both ways — a sealed electric replacement for hydraulic rams.
View specifications48V BLDC Motors
1 kW, 2 kW and 3 kW 48V brushless DC motors, plus custom builds, engineered to drive the RG600 and electrify low-speed equipment.
View specificationsControllers & Software
Integrated motor controllers with position feedback, a primary controller for up to 20 motors, an input controller and a GPS/Lidar add-on.
View specificationsWhere hydraulics still win
If the machine already runs a pump, the joint moves fast, or it takes heavy impacts, stay hydraulic. If it's battery-electric and the joint is slow and heavy, go electric.
Frequently asked questions
What is the maximum torque capacity of the RG600?
The RG600 is rated to 6,000 Nm continuous. Its max torque is 10,000 Nm, which covers shock and peak loads — it is not a figure to run at all day.
What ratios and lead time?
800:1, 1,200:1 and 1,600:1 are standard, with custom ratios from 400:1 to 2,400:1 on request. A higher ratio is slower but reaches the same torque with a smaller motor. Lead time is about 2 months.
Where can I buy one?
Direct from us. We don't have distributors yet, so you deal with the people who design the hardware. Start with a free spec, or order an evaluation unit for A$4,950, credited in full against a first order of 10 or more. We ship worldwide.
Do you sell to private buyers?
Yes. We mostly supply businesses building machines, but we also do one-off sales to independent buyers. Send us your application and we'll help you spec it.
What do you need from me to get a spec?
Five things, no drawings required: your application, required output torque and speed, duty cycle, available supply voltage, and quantity. Our torque calculator will work out the torque for you.
Do I have to buy the complete drive package?
No. The RG600 works on its own with your own motor and control. Our 48V BLDC motors, motor controllers and software are there if you want a matched drivetrain from one supplier.
Send us the joint
Tell us what it moves, the torque and speed, and how often it runs. We'll come back with the ratio, motor and pricing — no drawings needed to start.
